Тилтротаторная система TRS, TRS20, 645-6921

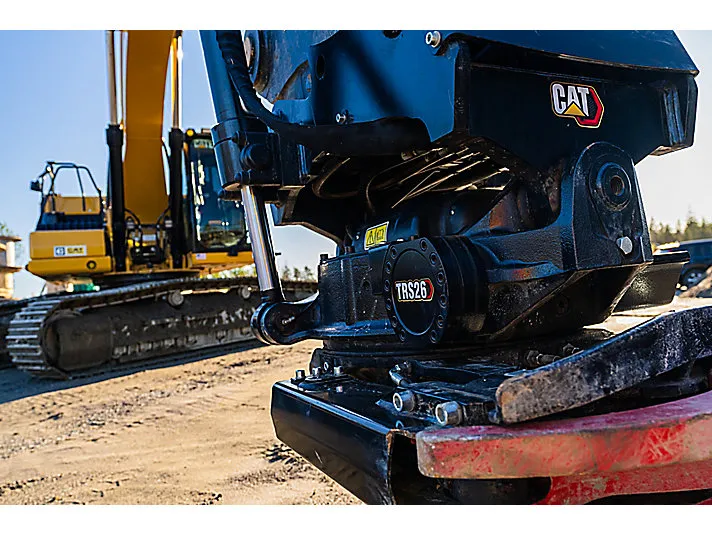

Simultaneous 360° rotation plus up to 40° left and right tilt adds capability to fixed attachments Mixed configurations enable use of a wide range of fabricated and hydraulic attachments to fit your needs Ability to covert standard S coupler to hydraulic connect S coupler Perform a large variety of tasks, such as digging, grading, compacting, etc. with more precise movements without repositioning the machine Use grapple module without removing bottom attachment

Тилтротаторная система TRS, TRS20, 645-6921. Назначение: оснащение совместимой специализированной техники. Конкретный режим применения определяется комплектацией базовой машины и установленным рабочим оборудованием.

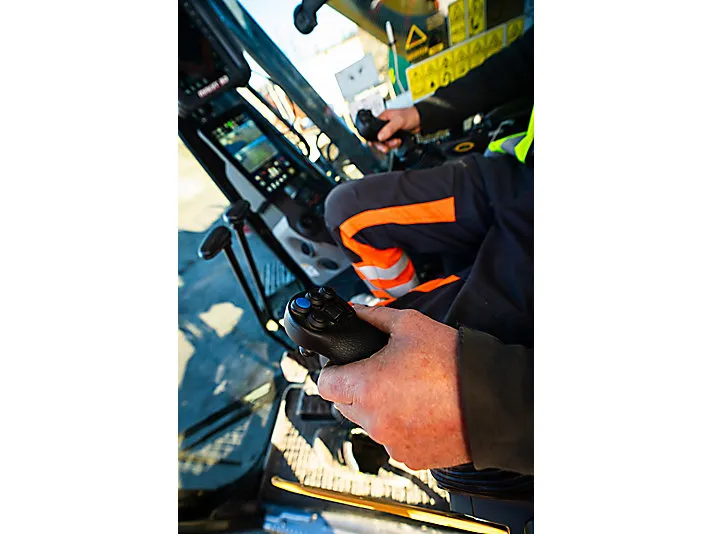

Fully integrated solution helps reduce installation time and imrpove durability of attachment Innovative control system, including full tiltrotator controls and positioning system, can be controlled through the in-cab monitor The GS520 Tilt sensor, included with a standard protected mounting location, enables precise tilt position feedback to the grading system SecureLock™ uses sensor technology inside the locking cylinder to verify the tool is correctly connected and securely locked to reduce the risk of swinging or dropping tools

Конструктивное исполнение рассчитано на рабочие нагрузки, возникающие при штатной эксплуатации. Для сохранения ресурса необходимо соблюдать допустимые нагрузки и регламент обслуживания.

Pressure compensated hydraulics maintain stable rotation speed for smooth and consistent operation High-flow hydraulic performance up to 200L/min flow at 250 bar for use with high-flow attachments Lubrication System has one grease point, which can be connected with machine's auto-grease system Oil-filled gear box keeps gears constantly lubricated, extending the life of the rotor Large diameter steel hoses help reduce back pressure, extend lifespan, and simplify maintenance

Согласование геометрии, крепления и рабочих параметров с базовой машиной помогает использовать доступную мощность без лишних потерь и сокращать время выполнения операций.

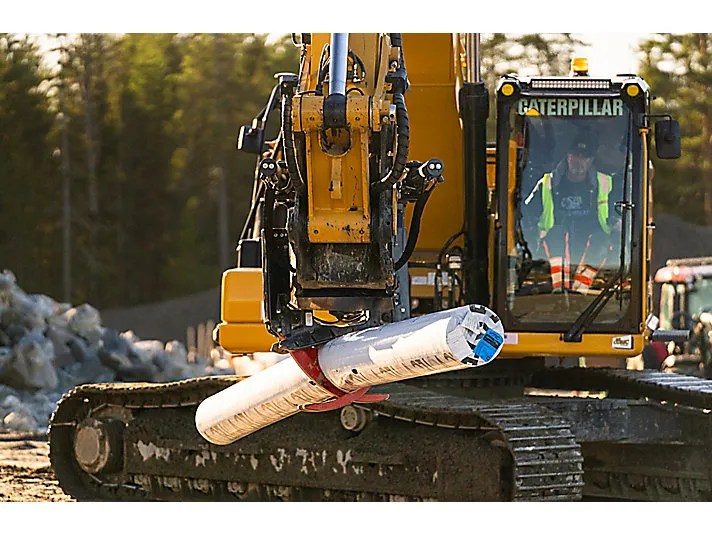

Curl to Unlock technology verifies the operator has the coupler or tiltrotator curled in the correct position before it is allowed to unlock during the process of switching attachments. This helps keep your attachments secure while working and connected to the coupler during the uncoupling process. Visual verification indicator allows the operator to visibly confirm from the cab, that the coupler has successfully locked the attachment in place. Grapple module is faster and safer than people manually moving heavy objects Operator stays in cab while switching attachments Hydraulic quick connect does not require manual hose change Double acting tilt cylinders have built-in load holding valves in the event of pressure loss By reducing the need for machine repositioning, tiltrotators help keep the excavator stable and improve job site safety. Operators can also work in tight spaces with fewer movements, helping to reduce the risk of accidents

Компоновка рассчитана на понятное подключение и эксплуатацию в составе совместимой техники. Перед началом работы проверяются фиксация, соединения и отсутствие помех движению оборудования.

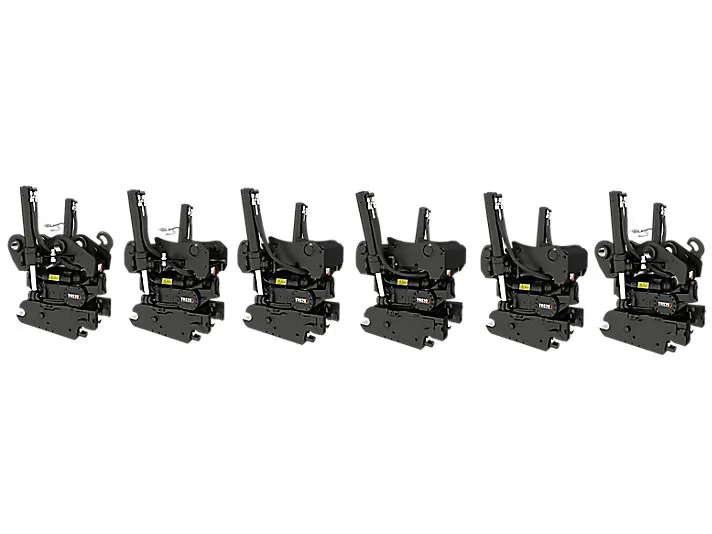

Meet your usage and attachment interface needs with a variety of top and bottom configuration options for your tiltrotator depending on your preferred coupler system. Tiltrotators with a pin-on top are ideal when the tiltrotator is used regularly and compatible attachments are switched out on the bottom side. Options with a specific coupler interface on top are used with a standard coupler so the tiltrotator can be detached and larger or higher flow requirement attachments can be used with the standard coupler. Specific coupler interfaces may require attachments or brackets for attachments with that interface. The following are the current available interfaces for tiltrotators: Pin-on S Type Hydraulic Connecting S Type

Периодический осмотр креплений, рабочих поверхностей, шлангов и соединений помогает своевременно выявлять износ и предотвращать внеплановые остановки техники.

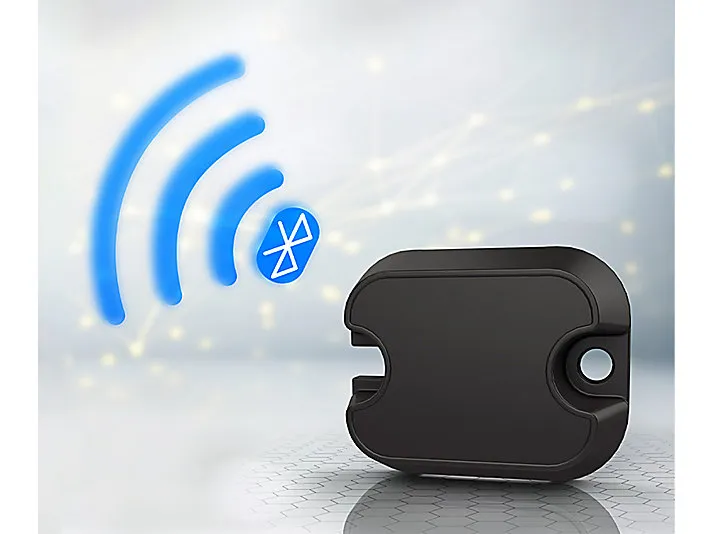

Never waste time looking for your attachments again. Cat asset tracking is available on select attachments. Track your entire fleet of attachments and machines from one source. Attachments with asset tracking can be viewed within VisionLink® alongside Product Link™ subscribed equipment. Keep your assets secure. Attachments with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Применяемость определяется моделью и серийным номером машины, типом крепления, массой навесного оборудования и параметрами рабочих контуров.
