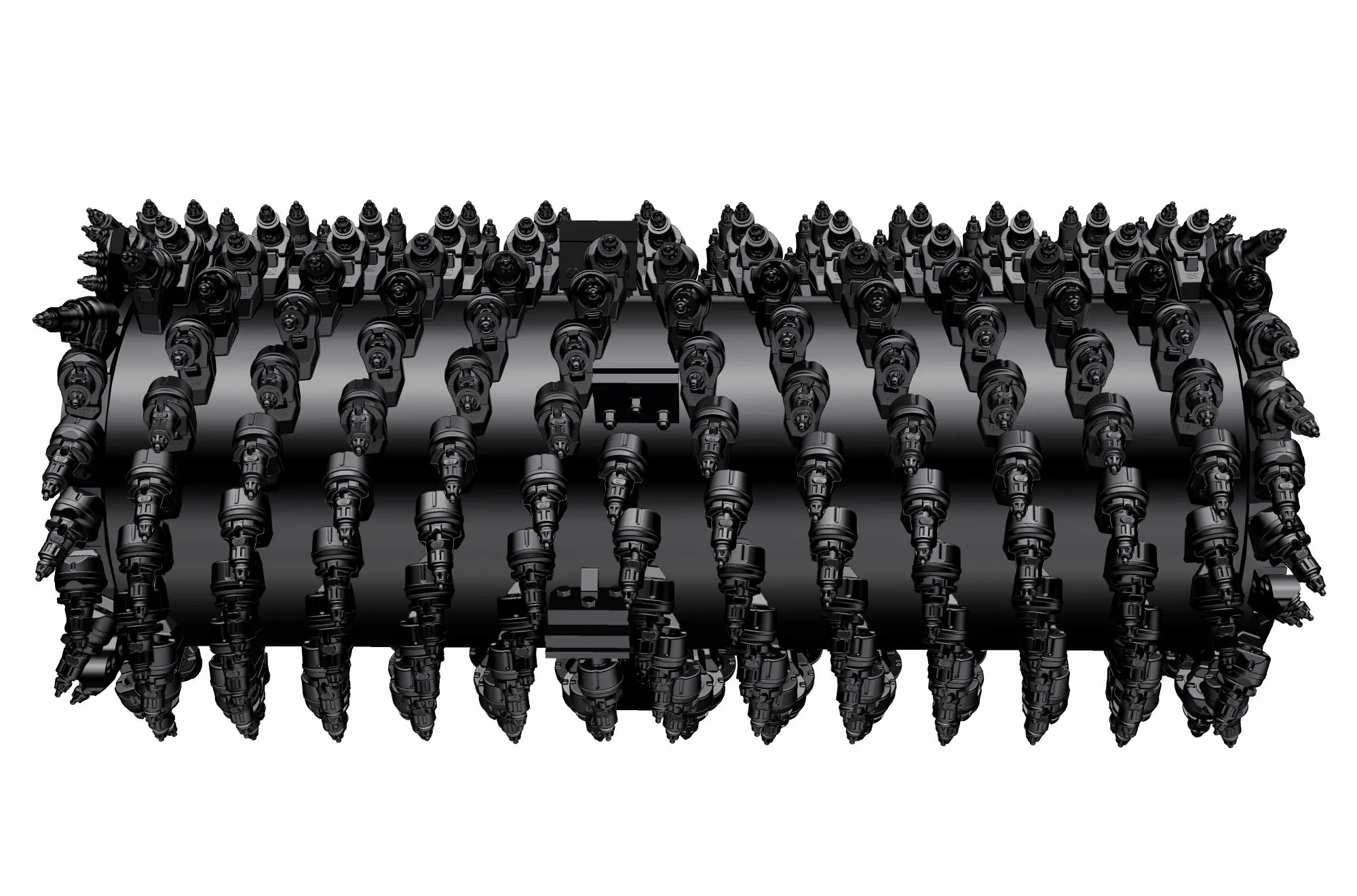

Фрезерный барабан, 2.2 м, 10 мм

The toolholder features multiple bit removal methods and a unique friction ring design to secure it to the rotor, yielding faster replacement and reduced downtime for rotor maintenance. A taper and friction ring design secures the toolholders to the rotor without a retaining pin, bolt or setscrew, speeding up replacement time by up to 50% and eliminating the need for fasteners or torqueing 20 mm wear collar is 66% longer than System G toolholders An anti-rotating toolholder design ensures proper position to prevent wear on the blocks and holders Water can penetrate through the toolholder radial access hole to aid tooth rotation for uniform bit wear Toolholders are available to accommodate bits with 20 mm, 22 mm and 25 mm shank size bits for various applications

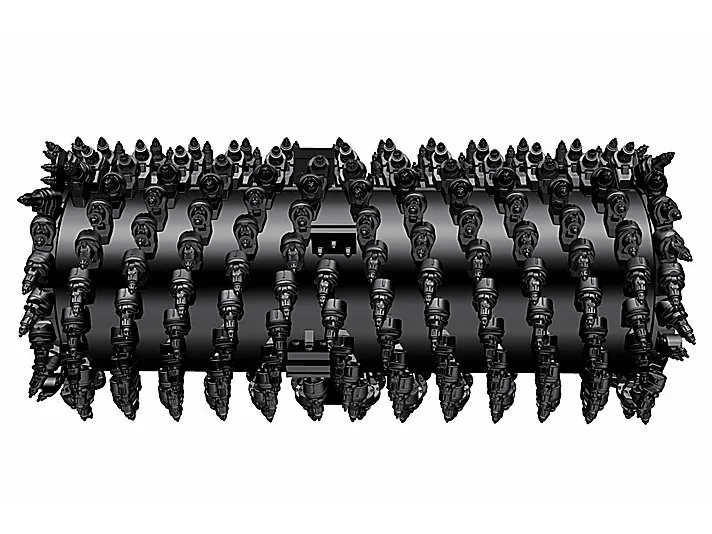

Фрезерный барабан, 2.2 м, 10 мм. Назначение: фрезерование покрытия или обработка материала. Конкретный режим применения определяется комплектацией базовой машины и установленным рабочим оборудованием.

Multiple methods for easy bit removal: Radial access hole Chisel points Rear access through the block

Конструктивное исполнение рассчитано на рабочие нагрузки, возникающие при штатной эксплуатации. Для сохранения ресурса необходимо соблюдать допустимые нагрузки и регламент обслуживания.

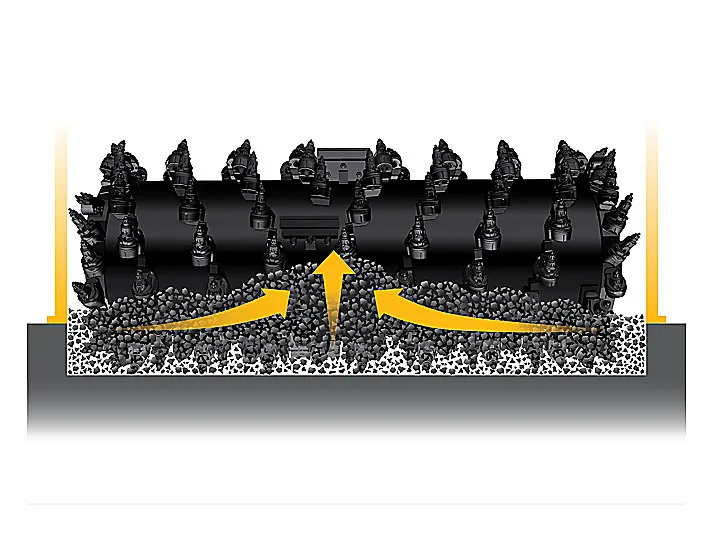

An optimized spiral angle increases speed of material flow from the outside to the center for efficient material extraction Blocks are specifically designed for each side of the rotor and arranged for optimized cutting effort and efficient material flow Kicker paddles are dimensioned and tested to ensure maximum ejection of material from the center of the cutting chamber to the conveyor The rotor design reduces component wear by quickly removing material from the cutting chamber, reducing drag, improving overall machine efficiency and lowering fuel consumption

Согласование геометрии, крепления и рабочих параметров с базовой машиной помогает использовать доступную мощность без лишних потерь и сокращать время выполнения операций.

Компоновка рассчитана на понятное подключение и эксплуатацию в составе совместимой техники. Перед началом работы проверяются фиксация, соединения и отсутствие помех движению оборудования.

Built to withstand demanding applications and extend rotor life Large heat-treated surface areas on the toolholder protect the base block from undesired wear Components are manufactured with abrasion-resistant, high-strength alloys to withstand the toughest applications High-strength components stand up to the demands of high-power applications Toolholder and base block designs are optimized to minimize stresses and provide lasting durability

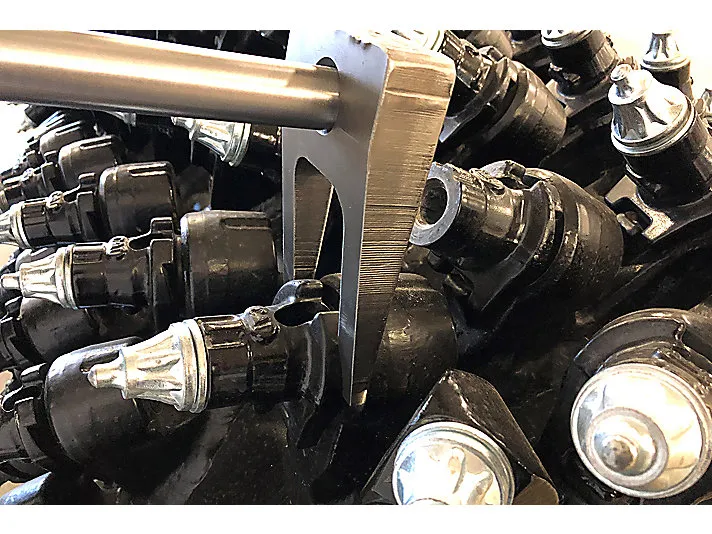

Maintaining bits and toolholders is key to achieving maximum productivity, and System K rotors are designed to simplify maintenance and get you back to work faster. Dual-retention toolholders eliminate the need for fasteners, reducing replacement time by up to 50% Bit removal can be done through multiple methods A variety of removal tools specifically for System K rotors help you replace bits and toolholders quickly Your Cat dealer offers convenient parts availability and service options, with an industry-leading supply chain and worldwide distribution to keep your rotor cutting smoothly and efficiently.

Периодический осмотр креплений, рабочих поверхностей, шлангов и соединений помогает своевременно выявлять износ и предотвращать внеплановые остановки техники.
